Meraki Access Points
PDF Downloads
With Meraki’s access points, users have access to one of the easiest-to-use and deploy devices. All of the access points feature a high-powered 2.4 GHz and 5 GHZ client-service radios. Plus, most also include an integrated third radio dedicated for security and a fourth radio for Bluetooth 5 Beacon location analytics. Together, these four radios all run concurrently.
The Air Marshal security radio delivers 24x7 real-time wireless security and RF analytics. It constantly monitors the local RF environment and adjusts RF usage to avoid interference. In addition, the security radio instantly detects vulnerabilities and attacks on all channels so that all security threats are contained without compromising your network’s stability. Even if the access point you select does not have a dedicated security radio, Meraki equips the client-service radios with some of the key components of Air Marshal so that your network is still secure. In addition, each access point has Layer 7 firewall for traffic shaping and one-click secure guest access for internet-only isolation.
Like other Meraki products, the access points are managed through the cloud-based Dashboard. Instantly see your entire network with unmatched visibility. See network users, their devices, and their applications all in one place. The dashboard is stocked with rich analytics so administrators can quickly create access control and application usage policies, optimizing both the end-user experience and network security.
When deploying a new Meraki access point, simply plug and play. Together, all of the Meraki access points work to create a self-configuring, self-healing mesh network. This network automatically optimizes itself based on the hardware models deployed and their usage profiles. Configure access points either network-wide or simply an individual unit-by-unit basis. This means that administrators can easily deploy and oversee all access points without an on-site IT staff.
See
Meraki access points are some of the easiest to use and deploy . From a cloud-based management, to plug-and-go, Meraki has made deploying and using their access points as simple as possible. Whether you have a small warehouse or a large warehouse, Meraki's access points can be tailored to meet your needs.
Product Title | Radio | Stream | Location | Type | Notes | Recommended for |
---|---|---|---|---|---|---|
MR20 | 802.11ac Wave 2 | 2x2 | Indoor | Basic Coverage | Entry-level, medium-density coverage | |
MR30H | 802.11ac Wave 2 | 2x2 | Indoor | Basic Coverage | Integrated 4-port gigabit switch | Hospitality and in-room coverage |
MR33 | 802.11ac Wave 2 | 2x2 | Indoor | General Purpose Wireless | General, medium-density coverage | |
MR42 | 802.11ac Wave 2 | 3x3 | Indoor | General Purpose Wireless | General coverage | |
MR42E | 802.11ac Wave 2 | 3x3 | Indoor | General Purpose Wireless | External antenna connectors | Focused coverage and flexibility |
MR45 | WiFi 6 (802.11ax) | 4x4 | Indoor | High Efficiency Wireless | 2.5 Gbps Multigigabit Ethernet | High-density coverage |
MR52 | 802.11ac Wave 2 | 4x4 | Indoor | High-Density Coverage | General coverage | |

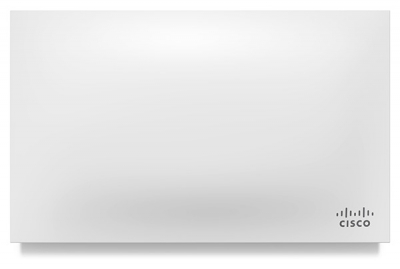

MR53 | 802.11ac Wave 2 | 4x4 | Indoor | High-Density Coverage | Multigiabit | General coverage |
MR53E | 802.11ac Wave 2 | 4x4 | Indoor | High-Density Coverage | Multigigabit & external antenna connectors | Focused coverage and flexibility |
MR55 | WiFi 6 (802.11ax) | 8x8 | Indoor | High Efficiency Wireless | 5Gbps Multigigabit Ethernet | High-density coverage |
MR70 | 802.11ac Wave 2 | 2x2 | Outdoor | Basic Ruggedized Coverage | IP67-Rated Integrated omni-directional antennas |
Entry-level, low-density coverage & rapid outdoor deployments |
MR74 | 802.11ac Wave 2 | 2x2 | Outdoor | General Purpose Ruggedized Wireless | IP67-Rated External antenna connectors |
Focused coverage and flexibility |
MR84 | 802.11ac Wave 2 | 4x4 | Outdoor | High-Density Ruggedized Coverage | IP67-Rated Multigigabit & external antenna connectors |
Focused coverage and flexibility |
All Meraki access points are managed through Meraki’s web-based dashboard. View everything that is happening on the network — access points, cameras, switches — on one screen locally or remotely. The dashboard provides unmatched visability over the entire network. See network users, their devices, and their applications all in one place. Stocked with rich analytics, administrators can quickly create access control and application usage policies.
All of the Meraki access points work to create a self-configuring, self-healing mesh network. The network automatically optimizes itself based on the hardware models deployed and their usage profiles. Configure access points either network-wide or simply an individual unit-by-unit basis even without an on-site IT staff.
